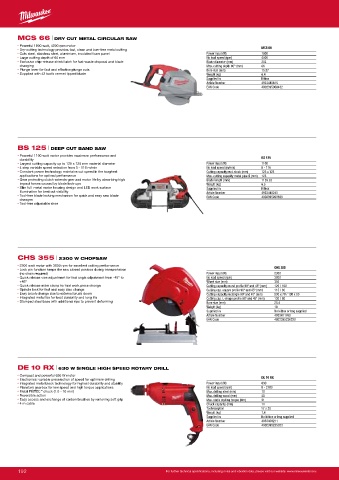

MCS 66 | DRY CUT METAL CIRCULAR SAW MDE 42 | MAGNETIC DRILLING PRESS
º Powerful 1800 watt, 4000 rpm motor MCS 66 º Lightweight, portable and powerful magnetic drill stand MDE 42
º Dry-cutting technology provides fast, clean and burr-free metal cutting º 1200 watts of motor power transmitted through three reduction gears
º Cuts steel, stainless steel, aluminium, insulated foam panel Power input (W) 1800 provide the power to drill a massive 42 mm hole through 50 mm thick Power input (W) 1200
º Large cutting depth of 66 mm No load speed (rpm) 4000 steel No load speed (rpm) 300 - 640
º Exclusive chip-release shield latch for fast waste disposal and blade Blade diameter (mm) 203 º High magnet power and the latest developments in electronics provide Full load speed (rpm) 170 - 330
changing Max. cutting depth 90° (mm) 66 the control and comply to all safety demands Max. diameter broaching capacity (mm) 42
º Plunge lever for fast and effective plunge cuts Bore size (mm) 15.87 º Electronic switch panel for easy operation Max. depth broaching capacity (mm) 50
º Supplied with 42 tooth cermet tipped blade Weight (kg) 6.4 º Supplied with an adjustable safety guard, cutting oil and hex keys Max. drilling solid bit (mm) 16
Supplied in Kitbox Max. static stalling torque (Nm) 85
Article Number 4933440615 Magn. holding power (at drill point pressure) (N) 10,000
EAN Code 4002395000432 Weight (kg) 11.5
Supplied in Kitbox
Article Number 4933380832
EAN Code 4002395228881

BS 125 | DEEP CUT BAND SAW MDE 41 | MAGNETIC DRILLING PRESS WITH ELECTRO MAGNET
º Powerful 1100 watt motor provides maximum performance and º 1200 Watt powerful motor with optimised drilling speed
durability BS 125 º 2 speed gear box for optimised drilling speed with 475 and 730 rpm´s MDE 41
º Largest cutting capacity up to 125 x 125 mm material diameter Power input (W) 1100 when using annual cutters or twist drill bits Power input (W) 1200
º 4 step variable speed selection from 0 - 116 m/min No load speed (m/min) 0 - 116 º AUTOSTOP ™ lift-off detection: Detects excess rotation and No load speed (rpm) 475 / 730
º Constant power technology maintains cut speed in the toughest Cutting capacity rect. stock (mm) 125 x 125 automatically cuts power to the drill for best user protection Max. diameter broaching capacity (mm) 41
applications for optimal performance Max. cutting capacity metal pipe Ø (mm) 125 º Electro powered magnet with 9930 N of holding force Max. depth broaching capacity (mm) 50
º Gear protecting clutch extends gear and motor life by absorbing high Blade length (mm) 1139.83 º Maximum drilling capacity of 41 mm with use of annual cutters and Max. drilling solid bit (mm) 13
impact forces caused by blade lock-ups Weight (kg) 6.5 13 mm straight shank twist drill bits Magn. holding power (at drill point pressure) (N) 9930
º Slim full metal motor housing design and LED work surface Supplied in Kitbox º Keyless 19 mm Weldon reception for fast and easy accessory change Weight (kg) 13.5
illumination for best cut visibility Article Number 4933448245 º 146 mm stroke length for usage of different accessories Supplied in Kitbox
º Tool-free blade locking mechanism for quick and easy saw blade EAN Code 4002395262830 º Tool-free detachable handle for right or left hand usage Article Number 4933451015
changes º On board LED light to illuminate the work surface EAN Code 4002395136681
º Tool-free adjustable shoe

CHS 355 | 2300 W CHOPSAW MDP 41 | MAGNETIC DRIILING PRESS WITH PERMANENT MAGNET
º 2300 watt motor with 3800 rpm for excellent cutting performance CHS 355 º 1200 Watt powerful motor with optimised drilling speed MDP 41
º Lock pin function keeps the saw closed position during transportation º 2 speed gear box for optimised drilling speed with 475 and 730 rpm´s
(no chain required) Power input (W) 2300 when using annual cutters or twist drill bits Power input (W) 1200
º Quick release vice adjustment for fast angle adjustment from -45° to No load speed (rpm) 3800 º AUTOSTOP ™ lift-off detection: Detects excess rotation and No load speed (rpm) 475 / 730
+45° Wheel size (mm) 355 automatically cuts power to the drill for best user protection Max. diameter broaching capacity (mm) 41
º Quick release mitre clamp for fast work piece change Cutting capacity round profile 90º and 45º (mm) 125 / 100 º Self-powered permanent magnet with 8890 N of holding force prevent Max. depth broaching capacity (mm) 50
º Spindle lock for fast and easy disc change Cutting cap. square profile 90º and 45º (mm) 115 / 80 accidental magnet deactivation for improved user protection and easy Max. drilling solid bit (mm) 13
º Easy brush change due to external brush doors Cutting capacity rectangle 90º and 45º (mm) 230 x 70 / 100 x 80 alignment Magn. holding power (at drill point pressure) (N) 8890
º Integrated metal fan for best durability and long life Cutting cap. L-shape profile 90º and 45º (mm) 130 / 80 º Maximum drilling capacity of 41 mm with use of annual cutters and Weight (kg) 14.0
º Stamped steel base with additional rips to prevent deforming Bore size (mm) 25.4 13 mm straight shank twist drill bits Supplied in Kitbox
Weight (kg) 18 º Keyless 19 mm Weldon reception for fast and easy accessory change Article Number 4933451014
Supplied in No kitbox or bag supplied º 146 mm stroke length for usage of different accessories EAN Code 4002395136674
Article Number 4933411760 º Tool-free detachable handle for right or left hand usage
EAN Code 4002395236220 º On board LED light to illuminate the work surface

DE 10 RX | 630 W SINGLE HIGH SPEED ROTARY DRILL
º Compact and powerful 630 W motor DE 10 RX
º Electronics: variable preselection of speed for optimum drilling
º Integrated metal block technology for highest durability and stability Power input (W) 630
º Planetary gearbox for low speed and high torque applications No load speed (rpm) 0 - 2700
º Metal FIXTEC ™ chuck (1.0 - 10 mm) Max. drilling steel (mm) 10
º Reversible action Max. drilling wood (mm) 30
º Easy access and exchange of carbon brushes by removing soft grip Max. static stalling torque (Nm) 21
º 4 m cable Chuck capacity (mm) 10
Tool reception ½˝ x 20
Weight (kg) 1.6
Supplied in No kitbox or bag supplied
Article Number 4933409211
EAN Code 4002395235353
