Page 8 - M_Dealer_2022_EMEA-katalog

WWW.MILWAUKEETOOL.EU MILWAUKEETOOLEU

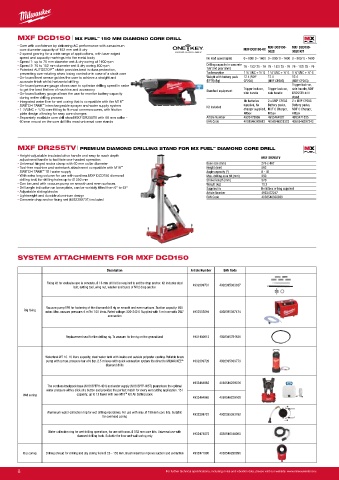

MXF DCD150 | MX FUEL 150 MM DIAMOND CORE DRILL MXF LSDP | MX FUEL LARGE SEWER DRUM MACHINE WITH POWERTREDZ ™
™
™
º Core with confidence by delivering AC performance with a maximum MXF DCD150- MXF DCD150- º The MX FUEL ™ with integrated POWERTREDZ ™ assists one-person MXF LSDP-301
core diameter capacity of 152 mm wet & dry MXF DCD150-0C 302C 302C KIT only to move the sewer machine in and out of the service van, up and
º 2 speed gearing for a wide range of applications, with laser edged down building stairs No load speed (rpm) 200
speed and capacity markings into the metal body No load speed (rpm) 0 - 800/ 0 - 1600 0 - 800/ 0 - 1600 0 - 800/ 0 - 1600 º World’s first battery powered large drum machine that uses Drain capacity (mm) 75 - 200
º Speed 1: up to 75 mm diameter wet & dry coring at 1600 rpm MILWAUKEE ® 16 mm and 20 mm inner core spirals in drains from Spiral diameter (mm) 20
º Speed 2: 76 to 152 mm diameter wet & dry coring 800 rpm Drilling capacity in concrete 76 - 152/ 25 - 76 76 - 152/ 25 - 76 76 - 152/ 25 - 76 75 mm up to 200 mm, with the power to clear roots up to 60 m down Spiral length (m) 23
º Patented AUTOSTOP ™ clutch provides best in class protection, 1st/ 2nd gear (mm) the line Weight with battery pack (EPTA) (kg) 56.6 (MXF CP203)
preventing over rotating when losing control or in case of a stuck core Tool reception 1 ¼˝ UNC + ½˝ G 1 ¼˝ UNC + ½˝ G 1 ¼˝ UNC + ½˝ G º Fully enclosed drum eliminates free spinning parts, providing the user 1 x 20 mm x 15.2 m inner core cable, 1 x
º On-board level sensor guides the user to achieve a straight and Weight with battery pack 12.4 (MXF 12.4 12.4 with more protection whilst working in and around fragile fixtures as Standard equipment 20 mm x 7.6 m inner core cable, 1 x 9 pc
accurate finish whilst horizontal drilling (EPTA) (kg) CP203) (MXF CP203) (MXF CP203) well as better mess containment whilst unclogging drains head attachment kit
º On-board pressure gauge allows user to optimise drilling speed in order Trigger lock-on, º Electronic foot pedal with non-slip grip and an integrated drum brake 1 x MXF CP203 Battery pack, MXF C
to get the best lifetime of machine and accessory Standard equipment Trigger lock-on, Trigger lock-on, side handle, MXF electronically slows the drum very fast for maximum end user control Kit included Charger, No kitbox or bag supplied
º On-board battery gauge allows the user to monitor battery capacity side handle side handle DR255TV drill and safety Article Number 4933471851
during entire drilling process stand º MX FUEL ™ drum capacity for 16 mm x 30 m long and 20 mm x 30 m EAN Code 4058546297503
º Integrated water line for wet coring that is compatible with the M18 ™ No batteries 2 x MXF CP203 2 x MXF CP203 long drain cleaning cables
SWITCH TANK interchangeable sprayer and water supply system Kit included supplied, No Battery packs, Battery packs, º ONE-KEY ™ tool tracking & security offers a free of charge cloud-based
™
º 1 1 /4˝UNC + 1 /2˝G core fitting to fit most common cores, with friction charger supplied, MXF C Charger, MXF C Charger, tracking network and inventory management platform for your tools.
™
plate design allowing for easy core changes Kitbox Kitbox Kitbox ONE-KEY also features a remote locking functionality
º Separately available core drill stand MXF DR255TV with 60 mm collar - Article Number 4933478986 4933464887 4933471835 º Building on the strengths of the FUEL ™ technology, MX FUEL ™ system
60 mm mount on the core drill fits most universal core stands EAN Code 4058546362683 4058546228323 4058546297343 reaches new levels of cordless performance. Focused on petrol, corded
and pneumatic performance, these tools deliver without the hazards
associated with emissions, noise, vibration, tripping hazards and the
frustrations of complex maintenance
MXF DR255TV | PREMIUM DIAMOND DRILLING STAND FOR MX FUEL DIAMOND CORE DRILL SYSTEM ATTACHMENTS FOR MXF LSDP
™
º Height-adjustable insulated drive handle and easy to reach depth
adjustment handle to facilitate one-handed operation MXF DR255TV Description Fits drain cleaners MXF LSDP Article Number EAN Code
º Universal hinged motor clamp with 60 mm collar diameter Base size (mm) 276 x 467
º Tool-free machine and watertank attachment compatible with M18 ™ Height (mm) 892 16 mm x 7.6 m inner core coupling end ✔ 4932471701 4058546296001
SWITCH TANK ™ 15 l water supply Angle capacity (°) 0 - 45
º With extra long column for use with cordless MXF DCD150 diamond Max. drilling core bit (mm) 250
drilling tool, for drilling holes up to Ø 250 mm Stroke length (mm) 570 16 mm x 15.2 m inner core coupling end ✔ 4932471702 4058546296018
º Can be used with vacuum pump on smooth and even surfaces Weight (kg) 13.2
º Drill angle indication on base plate, can be variably tilted from 0° to 45° Supplied in No kitbox or bag supplied 20 mm x 7.6 m inner core coupling end ✔ 4932471703 4058546296025
º Adjustable sliding blocks Article Number 4933472247
º Lightweight and durable aluminium design EAN Code 4058546338930 Tight wind spiral
º Concrete drop anchor fixing set (4932399731) included SD 20 mm x 15.2 m inner core coupling end ✔ 4932471704 4058546296032
16 mm anchor cable coupling end ✔ 4932471707 4058546296063
16 mm x 60 cm leader cable coupling end ✔ 4932471708 4058546296070
20 mm x 600 mm leader cable coupling end ✔ 4932471709 4058546296087
Straight auger SD Straight auger for 16, 20 mm cables ✔ 48532830 4058546323370
Funnel auger SD Funnel auger for 16, 20 mm cables ✔ 48532831 4058546323387
SYSTEM ATTACHMENTS FOR MXF DCD150
75 mm root cutter for 16, 20 mm cables ✔ 48532832 4058546323394
Description Article Number EAN Code

Fixing kit for exclusive use in concrete. Ø 16 mm drill bit is required to set the drop anchor. Kit includes stud 4932399731 4002395363827
bolt, setting tool, wing nut, washer and 5 pcs of M12 drop anchor Root cutter SD 100 mm root cutter for 16, 20 mm cables ✔ 48532833 4058546323400

150 mm root cutter for 16, 20 mm cables ✔ 48532834 4058546323417
Vacuum pump VP6 for fastening of the diamond drill rig on smooth and even surfaces. Suction capacity: 850
Rig fixing mbar. Max. vacuum pressure: 6 m³/h/ 100 l/min. Rated voltage: 220-240 V. Supplied with 5 m hose with DW7 4932352094 4002395367474
connection
Small opening tool for 16, 20 mm cables ✔ 48532835 4058546323424
Opening tool SD
Replacement seal for the drilling rig. To vacuum fix the rig on the ground/wall 4931400613 4002395764631
Medium opening tool for 16, 20 mm cables ✔ 48532836 4058546323431

Watertank WT 10. 10 liters capacity, steel water tank with inside and outside polyester coating. Reliable brass 75 mm chain knocker for 16, 20 mm cables ✔ 48532837 4058546323448
pump with a max. pressure bar of 6 bar. 2.5 m hose with quick connection system fits direct to MILWAUKEE ® 4932399726 4002395363773
diamond drills Chain knocker SD
100 mm chain knocker for 16, 20 mm cables ✔ 48532838 4058546323455
4933464962 4058546229078
The cordless backpack base (M18 BPFPH-401) and water supply (M18 BPFP-WST) guarantees the optimal
water pressure with a click of a button and provides the perfect match for every wet cutting application. 15 l
Wet coring capacity, up to 12 tanks with one M18 ™ 4.0 Ah battery pack
4933464965 4058546229108
Head kit SD 9 pc head kit 16, 20 mm cables ✔ 48532840 4058546296131
Aluminium water collection ring for wet drilling operations. For use with max. Ø 180 mm core bits. Suitable
for overhead coring 4932399727 4002395363780

Water collection ring for wet drilling operations, for use with max. Ø 152 mm core bits. Universal use with
diamond drilling tools. Suitable for floor and wall coring only 4932478073 4058546340063 MX drum guide Guide hose for MXFLSDP ✔ 4932478110 4058546340421
hose

Dry coring Drilling shroud for drilling and dry coring from Ø 25 - 152 mm. Brush insert to improve suction and extraction 4932471990 4058546298890 Pin key Pin key for all cables ✔ 4932471717 4058546296162

8 For further technical specifications, including noise and vibration data, please visit our website: www.milwaukeetool.eu For further technical specifications, including noise and vibration data, please visit our website: www.milwaukeetool.eu 9
