Page 178 - M_Dealer_2022_EMEA-katalog

WWW.MILWAUKEETOOL.EU MILWAUKEETOOLEU

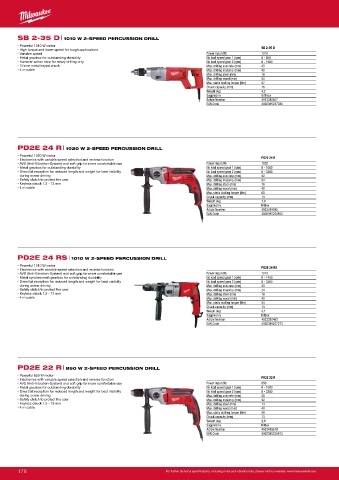

SB 2-35 D | 1010 W 2-SPEED PERCUSSION DRILL PD-705 | 705 W PERCUSSION DRILL
º Powerful 1010 W motor SB 2-35 D º Compact and powerful 705 W motor PD-705
º High torque and lower speed for tough applications º Compact ergonomic design with large soft grip areas offers excellent
º Variable speed Power input (W) 1010 handling Power input (W) 705
º Metal gearbox for outstanding durability No load speed gear 1 (rpm) 0 - 800 º Variable speed control with forward and reverse mechanism No load speed (rpm) 0 - 3000
º Hammer action stop for rotary drilling only No load speed gear 2 (rpm) 0 - 1800 º Hammer action stop for rotary drilling Max. drilling concrete (mm) 15
º 16 mm metal keyed chuck Max. drilling concrete (mm) 35 º 13 mm metal keyless chuck Max. drilling masonry (mm) 16
º 4 m cable Max. drilling masonry (mm) 40 º 43 mm gear neck diameter for use in drill stands Max. drilling steel (mm) 13
Max. drilling steel (mm) 16 º 4 m cable Max. drilling wood (mm) 30
Max. drilling wood (mm) 50 Max. static stalling torque (Nm) 15
Max. static stalling torque (Nm) 57 Chuck capacity (mm) 13
Chuck capacity (mm) 16 Weight (kg) 1.9
Weight (kg) 4.2 Supplied in No kitbox or bag supplied
Supplied in Gift box Article Number 4933431955
Article Number 4933380507 EAN Code 4002395243914
EAN Code 4002395227280

PD2E 24 R | 1020 W 2-SPEED PERCUSSION DRILL PDE 16 RP | 630 W SINGLE SPEED PERCUSSION DRILL
º Powerful 1020 W motor º Excellent handling from a compact ergonomic design
º Electronics with variable speed selection and reverse function PD2E 24 R º Planetary gearbox for low speed and high torque applications PDE 16 RP
º AVS (Anti-Vibration-System) and soft grip for more comfortable use Power input (W) 1020 º Integrated-Metal-Block technology for highest durability and stability Power input (W) 630
º Metal gearbox for outstanding durability No load speed gear 1 (rpm) 0 - 1000 º Electronics: variable preselection of speed for optimum drilling No load speed (rpm) 0 - 950
º Direct bit reception for reduced length and weight for best visibility No load speed gear 2 (rpm) 0 - 3200 º Hammer action stop for rotary drilling Max. drilling concrete (mm) 16
during screw driving Max. drilling concrete (mm) 22 º 4 m cable Max. drilling masonry (mm) 20
º Safety clutch to protect the user Max. drilling masonry (mm) 24 Max. drilling steel (mm) 13
º Keyless chuck 1.5 - 13 mm Max. drilling steel (mm) 16 Max. drilling wood (mm) 40
º 4 m cable Max. drilling wood (mm) 40 Max. static stalling torque (Nm) 59
Max. static stalling torque (Nm) 60 Chuck capacity (mm) 13
Chuck capacity (mm) 13 Weight (kg) 2.0
Weight (kg) 3.0 Supplied in Kitbox
Supplied in Kitbox Article Number 4933409206
Article Number 4933419595 EAN Code 4002395235339
EAN Code 4002395238651

PD2E 24 RS | 1010 W 2-SPEED PERCUSSION DRILL PDE 13 RX | 630 W SINGLE SPEED PERCUSSION DRILL
º Powerful 1010 W motor PD2E 24 RS º Excellent handling from a compact ergonomic design PDE 13 RX
º Electronics with variable speed selection and reverse function º IMB - Integrated-Metal-Block technology for highest durability and
º AVS (Anti-Vibration-System) and soft grip for more comfortable use Power input (W) 1010 stability Power input (W) 630
º Metal synchromesh gearbox for outstanding durability No load speed gear 1 (rpm) 0 - 1450 º Electronics: variable preselection of speed for optimum drilling No load speed (rpm) 0 - 2900
º Direct bit reception for reduced length and weight for best visibility No load speed gear 2 (rpm) 0 - 3400 º Hammer action stop for rotary drilling Max. drilling concrete (mm) 15
during screw driving Max. drilling concrete (mm) 20 º Keyless chuck 1,5 - 13 mm with one sleeve Max. drilling masonry (mm) 18
º Safety clutch to protect the user Max. drilling masonry (mm) 24 º Easy access and exchange of carbon brushes by removing soft grip Max. drilling steel (mm) 13
º Keyless chuck 1.5 - 13 mm Max. drilling steel (mm) 16 º 4 m cable Max. drilling wood (mm) 30
º 4 m cable Max. drilling wood (mm) 40 Max. static stalling torque (Nm) 21
Max. static stalling torque (Nm) 54 Chuck capacity (mm) 13
Chuck capacity (mm) 13 Weight (kg) 1.8
Weight (kg) 3.1 Supplied in Kitbox
Supplied in Kitbox Article Number 4933409200
Article Number 4933380462 EAN Code 4002395235322
EAN Code 4002395227273

PD2E 22 R | 850 W 2-SPEED PERCUSSION DRILL B2E 16 RLD | 900 W 2-SPEED ROTARY DRILL
º Powerful 850 W motor PD2E 22 R º Powerful 900 W motor B2E 16 RLD
º Electronics with variable speed selection and reverse function º High torque and lower speed for tough applications
º AVS (Anti-Vibration-System) and soft grip for more comfortable use Power input (W) 850 º Variable speed selection Power input (W) 900
º Metal gearbox for outstanding durability No load speed gear 1 (rpm) 0 - 1000 º Metal gearbox for outstanding durability No load speed gear 1 (rpm) 0 - 750
º Direct bit reception for reduced length and weight for best visibility No load speed gear 2 (rpm) 0 - 3200 º 16 mm metal keyed chuck No load speed gear 2 (rpm) 0 - 1600
during screw driving Max. drilling concrete (mm) 20 º 4 m cable Max. drilling steel (mm) 16
º Safety clutch to protect the user Max. drilling masonry (mm) 22 Max. drilling wood (mm) 40
º Keyless chuck 1.5 - 13 mm Max. drilling steel (mm) 13 Max. static stalling torque (Nm) 88
º 4 m cable Max. drilling wood (mm) 40 Chuck capacity (mm) 16
Max. static stalling torque (Nm) 56 Tool reception M18 x 2.5
Chuck capacity (mm) 13 Weight (kg) 4.2
Weight (kg) 2.9 Supplied in No kitbox or bag supplied
Supplied in Kitbox Article Number 4933380482
Article Number 4933419570 EAN Code 4002395227198
EAN Code 4002395238613

178 For further technical specifications, including noise and vibration data, please visit our website: www.milwaukeetool.eu For further technical specifications, including noise and vibration data, please visit our website: www.milwaukeetool.eu 179
