WWW.MILWAUKEETOOL.EU MILWAUKEETOOLEU

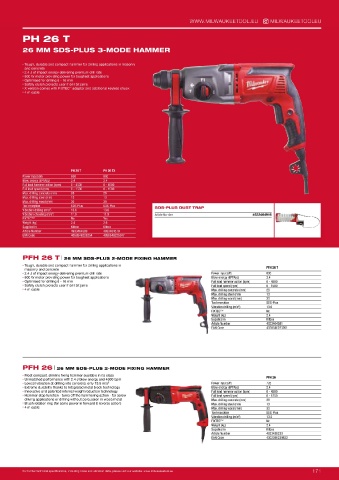

PH 26 T
PLH 32 | 32 MM SDS-PLUS 3-MODE L-SHAPED HAMMER
º Tough, durable hammer with excellent drilling performance in concrete PLH 32 XE
from the high torque motor and gears and a 3.8 joule single blow 26 MM SDS-PLUS 3-MODE HAMMER
energy Power input (W) 900
º 900 watt motor combined with optimised drilling speed results in Blow energy (EPTA)(J) 3.8
unsurpassed drilling performance Full load hammer action (bpm) 0 - 4500
º Electronics with accelerator switch Full load speed (rpm) 0 - 800 º Tough, durable and compact hammer for drilling applications in masonry
º Good balance and easy handling from the compact L-shape design Max. drilling concrete (mm) 32 and concrete
with AVS (Anti-Vibration-System) and soft grip handle Max. drilling steel (mm) 16 º 2.4 J of impact energy delivering premium drill rate
º Fast tool changing from the FIXTEC ™ system with keyless chuck Max. drilling wood (mm) 40 º 800 W motor providing power for toughest applications
º Heavy Duty magnesium gear casing for optimum seating of gears for a Tool reception SDS-Plus + Reduced shank 13 mm º Optimised for drilling 6 - 16 mm
longer operational life Vibration drilling (m/s²) 22 º Safety clutch protects user if drill bit jams
º Reliable safety clutch protects machine and user Vibration chiseling (m/s²) 20 º X version comes with FIXTEC ™ adaptor and additional keyless chuck
º Roto-stop and variolock for maximum control when doing light FIXTEC™ Yes º 4 m cable
chiselling work
º 4 m cable Weight (kg) 3.6
Supplied in Kitbox
Article Number 4933400069
EAN Code 4002395233342

PLH 28 | 28 MM SDS-PLUS 3-MODE L-SHAPED HAMMER
º Hardest hitting corded SDS hammer in its class. Tough, durable
hammer with excellent drilling performance in concrete from the high PLH 28 E PLH 28 XE
torque motor and gears and a 4.1 joule single blow energy Power input (W) 800 800
º 800 watt motor combined with optimised drilling speed results in Blow energy (EPTA)(J) 4.1 4.1
unsurpassed drilling performance Full load hammer action (bpm) 0 - 4000 0 - 4000 PH 26 T PH 26 TX
º Low vibration 10.6 m/s² due to patented dual anti-vibration* handle Full load speed (rpm) 0 - 1000 0 - 1000 Power input (W) 800 800
º Good balance and easy handling from the compact L-shape design Max. drilling concrete (mm) 28 28 Blow energy (EPTA)(J) 2.4 2.4
with dual patented AVS (Anti-Vibration-System) and soft grip handle Max. drilling steel (mm) 13 13 Full load hammer action (bpm) 0 - 4500 0 - 4500
º Reliable safety clutch protects machine and user Max. drilling wood (mm) 40 40 Full load speed (rpm) 0 - 1500 0 - 1500
º Roto-stop and variolock for maximum control when doing light SDS-Plus + Reduced Max. drilling concrete (mm) 26 26
chiselling work Tool reception SDS-Plus shank 13 mm Max. drilling steel (mm) 13 13
º XE version comes with fast changing FIXTEC ™ adaptor and 13 mm Vibration drilling (m/s²) 10.6 10.6
keyed chuck Vibration chiseling (m/s²) 6.8 6.8 Max. drilling wood (mm) 30 30
º 4 m durable rubber cable FIXTEC™ No Yes Tool reception SDS-Plus SDS-Plus SDS-PLUS DUST TRAP
º *patent pending Vibration drilling (m/s²) 13.6 13.6
Weight (kg) 3.4 3.6 Vibration chiseling (m/s²) 11.9 11.9 Article Number 4932464916
Supplied in Kitbox Kitbox FIXTEC™ No Yes
Article Number 4933446790 4933446800 Weight (kg) 2.4 2.6
EAN Code 4002395005482 4002395005499 Supplied in Kitbox Kitbox
Article Number 4933464580 4933464579
EAN Code 4058546225254 4058546225247
PH 30 | 30 MM SDS-PLUS 3-MODE HAMMER PFH 26 T | 26 MM SDS-PLUS 2-MODE FIXING HAMMER
º Over sized heavy weight striker delivers 3.6 joules of impact energy PH 30 POWER X º Tough, durable and compact hammer for drilling applications in PFH 26 T
º 1030 watt motor combined with optimised drilling speed results in masonry and concrete
unsurpassed drilling performance Power input (W) 1030 º 2.4 J of impact energy delivering premium drill rate Power input (W) 800
º Soft start for precise start of drilling/chiselling Blow energy (EPTA)(J) 3.6 º 800 W motor providing power for toughest applications Blow energy (EPTA)(J) 2.4
º Low vibration due to ergonomic soft grip on main and side handle Full load hammer action (bpm) 0 - 3800 º Optimised for drilling 6 - 16 mm Full load hammer action (bpm) 0 - 4500
º Soft hammer mode for drilling in sensitive materials Full load speed (rpm) 0 - 850 º Safety clutch protects user if drill bit jams Full load speed (rpm) 0 - 1500
º Fast tool changing from FIXTEC ™ system with keyless chuck Max. drilling concrete (mm) 30 º 4 m cable Max. drilling concrete (mm) 26
º Greatest durability in class is achieved by utilising integrated metal Max. drilling steel (mm) 13 Max. drilling steel (mm) 13
block technology in the gearing mechanism Max. drilling wood (mm) 40 Max. drilling wood (mm) 30
º Brush rotation ring (for same power in forward & reverse action) Tool reception SDS-Plus + Reduced shank 13 mm Tool reception SDS-Plus
º Safety clutch protects machine and user if drill bit jams Vibration drilling (m/s²) 22 Vibration drilling (m/s²) 13.6
º 4 m cable Vibration chiseling (m/s²) 14 FIXTEC™ No
FIXTEC™ Yes Weight (kg) 2.4
Weight (kg) 2.9 Supplied in Kitbox
Supplied in Kitbox Article Number 4933464581
Article Number 4933396420 EAN Code 4058546225261
EAN Code 4002395234967

PH 28 | 28 MM SDS-PLUS 3-MODE HAMMER PFH 26 | 26 MM SDS-PLUS 2-MODE FIXING HAMMER
º Over sized heavy weight striker delivers 3.4 joules of impact energy PH 28 PH 28 X º Most compact, slimline fixing hammer available in its class PFH 26
º 820 watt motor combined with optimised drilling speed results in º Unmatched performance with 2.4 J blow energy and 4500 bpm
unsurpassed drilling performance Power input (W) 820 820 º Lowest vibration at drilling into concrete: only 13.5 m/s² Power input (W) 725
º Soft start for precise start of drilling/chiselling Blow energy (EPTA)(J) 3.4 3.4 º Extreme durability thanks to Integrated metal block technology Blow energy (EPTA)(J) 2.4
º Low vibration due to ergonomic soft grip on main and side handle Full load hammer action (bpm) 0 - 4000 0 - 4000 º Innovative and patented internal weight reduction technology Full load hammer action (bpm) 0 - 4500
º Soft hammer mode for drilling in sensitive materials Full load speed (rpm) 0 - 900 0 - 900 º Hammer stop function - turns off the hammering action - for screw Full load speed (rpm) 0 - 1250
º Greatest durability in class is achieved by utilising integrated metal Max. drilling concrete (mm) 28 28 driving applications or drilling without percussion in wood/metal Max. drilling concrete (mm) 26
block technology in the gearing mechanism Max. drilling steel (mm) 13 13 º Brush rotation ring (for same power in forward & reverse action) Max. drilling steel (mm) 13
º Brush rotation ring (for same power in forward & reverse action) Max. drilling wood (mm) 30 30 º 4 m cable Max. drilling wood (mm) 30
º Safety clutch protects machine and user if drill bit jams SDS-Plus + Reduced Tool reception SDS-Plus
º X version comes with fast changing FIXTEC ™ adaptor with keyless Tool reception SDS-Plus shank 13 mm Vibration drilling (m/s²) 13.5
chuck Vibration drilling (m/s²) 22 22 FIXTEC™ No
º 4 m cable Vibration chiseling (m/s²) 16 16 Weight (kg) 2.4
FIXTEC™ No Yes Supplied in Kitbox
Weight (kg) 2.7 2.9 Article Number 4933428230
Supplied in Kitbox Kitbox EAN Code 4002395239832
Article Number 4933396396 4933396392
EAN Code 4002395234936 4002395234943

170 For further technical specifications, including noise and vibration data, please visit our website: www.milwaukeetool.eu For further technical specifications, including noise and vibration data, please visit our website: www.milwaukeetool.eu 171
