WWW.MILWAUKEETOOL.EU MILWAUKEETOOLEU

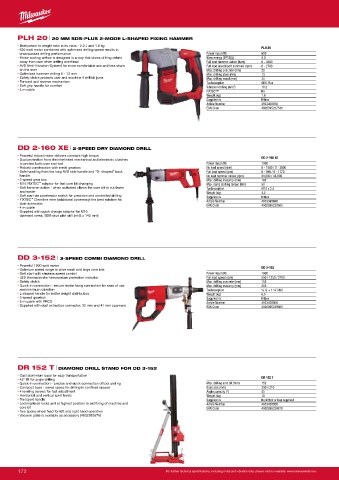

PLH 20 | 20 MM SDS-PLUS 2-MODE L-SHAPED FIXING HAMMER DCM 2-350 C | DIAMOND DRILLING MOTOR
º Best power to weight ratio in its class - 2.0 J and 1.9 kg PLH 20 º Two-speed diamond coring motor DCM 2-350 C
º 620 watt motor combined with optimised drilling speed results in º Internal slip clutch
unsurpassed drilling performance Power input (W) 620 º Triple-reduction gearing Power input (W) 2800
º Motor cooling airflow is designed in a way that blows drilling debris Blow energy (EPTA)(J) 2.0 º Soft start switch No load speed gear 1 (rpm) 300
away from user when drilling overhead Full load hammer action (bpm) 0 - 4400 º Motor overload protection No load speed gear 2 (rpm) 600
º AVS (Anti-Vibration-System) for more comfortable use and less strain Full load speed (soft hammer) (rpm) 0 - 2700 º PRCD residual current device Max. drilling core bit (mm) 350
on the user Max. drilling concrete (mm) 20 º Built-in water swivel Tool reception 1 ¼˝ UNC
º Optimised hammer drilling 5 – 12 mm Max. drilling steel (mm) 13 º Dual-mount switch box Weight (kg) 9.0
º Safety clutch protects user and machine if drill bit jams Max. drilling wood (mm) 30 º Supplied with open end wrench, Hex keys and strap with switch box Supplied in No kitbox or bag supplied
º Forward and reverse mechanism Tool reception SDS-Plus Article Number 40044
º Soft grip handle for comfort Vibration drilling (m/s²) 10.2 EAN Code 4002395229772
º 4 m cable FIXTEC™ No
Weight (kg) 1.9
Supplied in Kitbox
Article Number 4933408070
EAN Code 4002395237531

DD 2-160 XE | 2-SPEED DRY DIAMOND DRILL DR 350 T | DIAMOND DRILL STAND FOR DCM 2-350 C
º Powerful robust motor delivers constant high torque º Light weight drilling rig from aluminium
º Dual protection from the interlinked mechanical and electronic clutches DD 2-160 XE º Tilting (0 - 45°) DR 350 T
to protect both user and tool Power input (W) 1500 º Drill angle and depth display Max. drilling core bit (mm) 350
º Robust construction with metal gearbox No load speed (rpm) 0 - 1500 / 0 - 3000 º Quick-connect motor plate Stroke length (mm) 610
º Safe handling from the long AVS side handle and “D- shaped” back Full load speed (rpm) 0 - 890 / 0 - 1770 º Fine adjustment of feed speed Height (mm) 1042
handle No load hammer stroke (rpm) 24,000 / 48,000 º Vertical and horizontal water level Base size (mm) 391 x 523
º 2-speed gear box Max. drilling masonry (mm) 162 º Drill hole centering device Angle capacity (°) 45
º M16 FIXTEC ™ adaptor for fast core bit changing Max. static stalling torque (Nm) 50 º Leveling screws Weight (kg) 19.5
º Soft hammer action - when activated allows the core bit to cut faster Tool reception M18 x 2.5 º Feed handle attachable to both sides of rig Supplied in No kitbox or bag supplied
and easier Weight (kg) 4.2 º Transportable handle & wheels Article Number 4933400600
º Soft start via accelerator switch for precision and controlled drilling Supplied in Kitbox º Supplied with 3 /16˝ Hex key, 6 mm Hex key, 17 x 19 wrench, quick- EAN Code 4002395234011
º FIXTEC ™ Cleanline rotor (additional accessory) the best solution for Article Number 4933368690 connect motor plate, 4 pcs. M8 x 25 mm screws, centering device
dust extraction EAN Code 4002395232505
º 4 m cable
º Supplied with quick change adaptor for M16
diamond cores, SDS-plus pilot drill bit (8 x 140 mm)

DD 3-152 | 3-SPEED COMBI DIAMOND DRILL DCM 2-250 C | DIAMOND DRILLING MOTOR
º Powerful 1900 watt motor DD 3-152 º Two-speed diamond coring motor DCM 2-250 C
º Optimum speed range to drive small and large core bits º Internal slip clutch
º Soft start with stepless speed control Power input (W) 1900 º Triple-reduction gearing Power input (W) 2800
º LED thermal motor temperature protection indicator Full load speed (rpm) 550 / 1250 / 2700 º Soft start switch No load speed gear 1 (rpm) 450
º Safety clutch Max. drilling concrete (mm) 152 º Motor overload protection No load speed gear 2 (rpm) 900
º Quick-in connection - secure motor fixing connection for ease of use Max. drilling masonry (mm) 202 º PRCD residual current device Max. drilling core bit (mm) 250
and minimum vibration Tool reception ½˝ G + 1 ¼˝ UNC º Built-in water swivel Tool reception 1 ¼˝ UNC
º L shaped handle for better weight distribution Weight (kg) 6.5 º Dual-mount switch box Weight (kg) 9.0
º 3-speed gearbox Supplied in Kitbox º Supplied with open end wrench, Hex keys and strap with switch box Supplied in No kitbox or bag supplied
º 5 m cable with PRCD Article Number 4933428000 Article Number 40964
º Supplied with dust extraction connector, 32 mm and 41 mm spanners EAN Code 4002395239801 EAN Code 4002395229796

DR 152 T | DIAMOND DRILL STAND FOR DD 3-152 DR 250 TV | DIAMOND DRILL STAND FOR DCM 2-250 C
º Cast aluminium base for easy transportation DR 152 T º Light weight drilling rig from aluminium DR 250 TV
º 45° tilt for angle drilling º Tilting (0 - 45°)
º Quick-in connection - precise and quick connection of tool and rig Max. drilling core bit (mm) 152 º Drill angle and depth display Max. drilling core bit (mm) 250
º Compact base - saves space for drilling in confined spaces Base size (mm) 330 x 210 º Quick-connect motor plate Stroke length (mm) 520
º 4 leveling screws for fast adjustment Angle capacity (°) 45 º Integrated vacuum base plate (use with and without vacuum possible) Height (mm) 834
º Horizontal and vertical spirit levels Weight (kg) 10 º Fine adjustment of feed speed Base size (mm) 276 x 467
º Transport handle Supplied in No kitbox or bag supplied º Vertical and horizontal water level Angle capacity (°) 45
º Locking knob locks unit at highest position to aid fixing of machine and Article Number 4933428020 º Drill hole centering device Weight (kg) 10.0
core bit EAN Code 4002395239818 º Leveling screws Supplied in No kitbox or bag supplied
º Two spoke wheel feed for left and right hand operation º Feed handle attachable to both sides of rig Article Number 4933400590
º Vacuum plate is available as accessory (4932352676) º Supplied with 3 /16˝ Hex key, 6 mm Hex key, 17 x 19 wrench, quick- EAN Code 4002395234028
connect motor plate, 4 pcs. M8 x 25 mm screws, centering device,
vacuum rubber seal

172 For further technical specifications, including noise and vibration data, please visit our website: www.milwaukeetool.eu For further technical specifications, including noise and vibration data, please visit our website: www.milwaukeetool.eu 173
